JYY0680 2D barcode scanner for payment Specification
Product Features
It can scan barcodes on screen with excellent screen scanning performance. It is easy to scan barcodes with fishion design. The product has a design patent. It is easy to use without installing driver. It supports online upgrades and secondary development.
Introduction

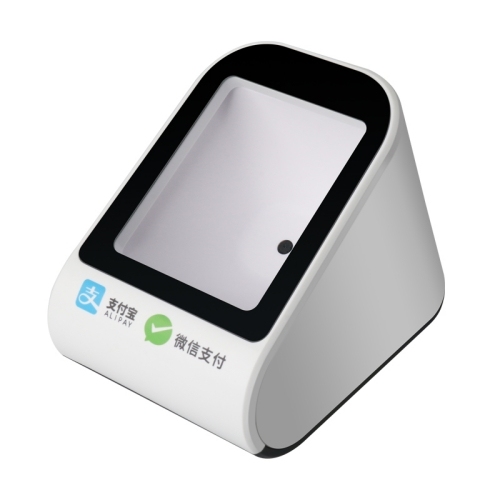

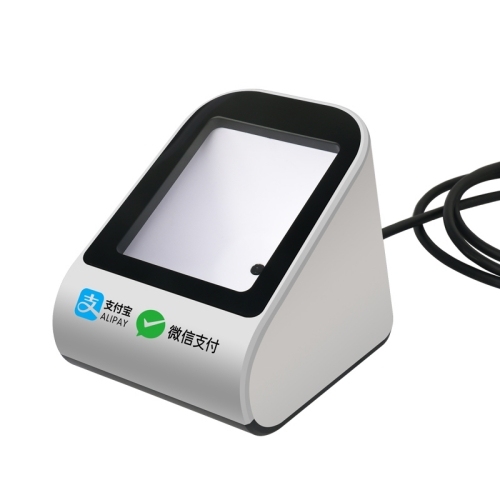

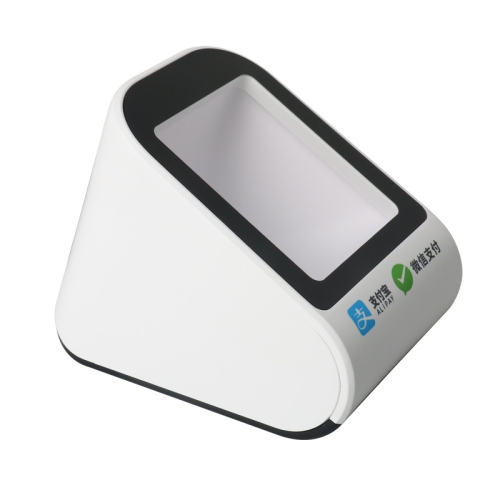

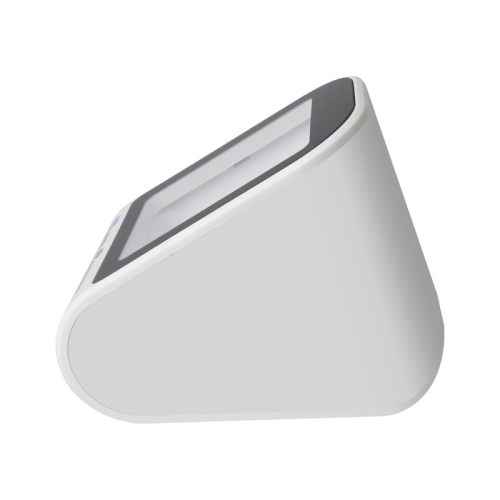

2D barcode scanner for payment can scan barcodes on media such as paper, goods and screen with advanced CMOS image recognition technology and intelligent image recognition system. It can be used in supermarket, department store, convenience store, drugstore, liquor store and grocery store.

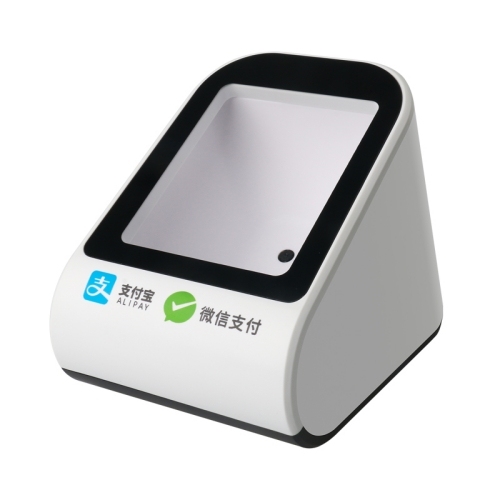

Appearance

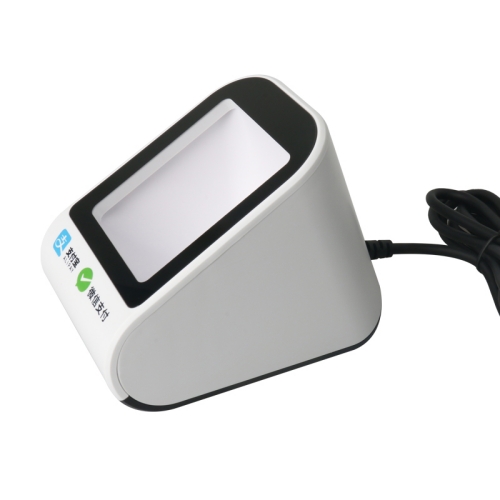

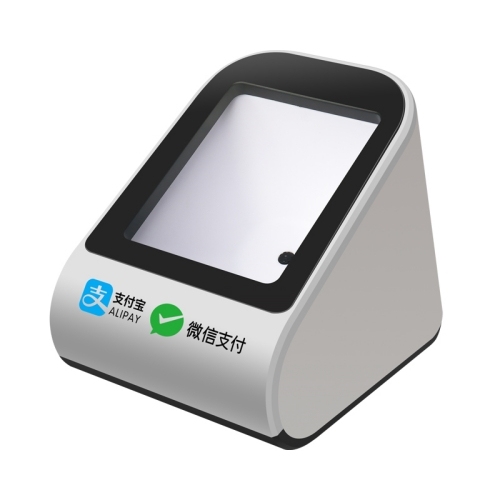

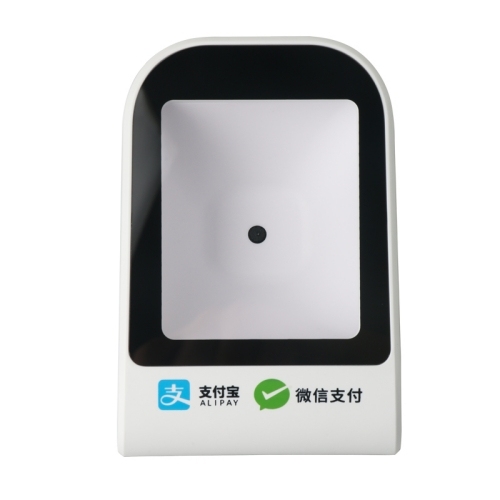

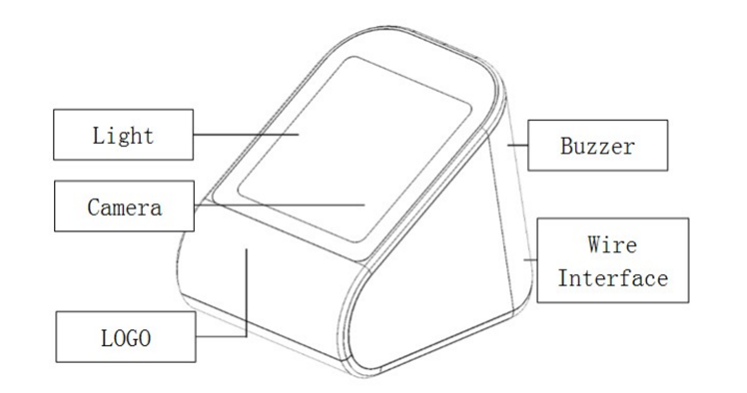

The following picture is the appearanceS. There are scanning window and LOGO on the front. The buzzer and wire Interface are on the back.

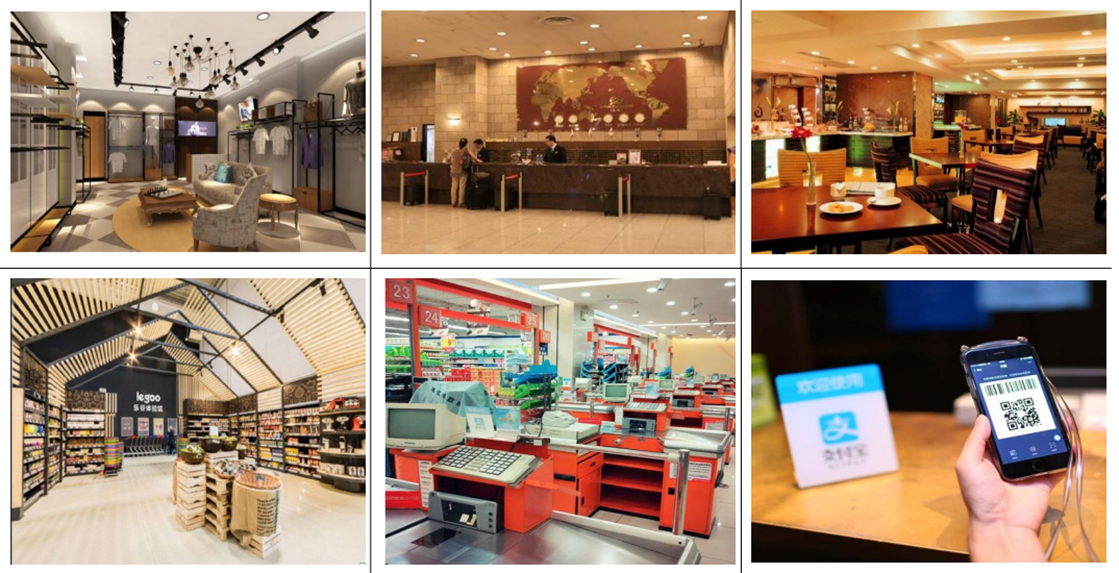

Application
It can be used in supermarket, department store, convenience store, drugstore, liquor store and grocery store.
Communication Port
The scanner must be connected to a host to operate. The host can be PC, POS, SCM, Android host or any other intelligent terminal device with USB, TTL or RS232.

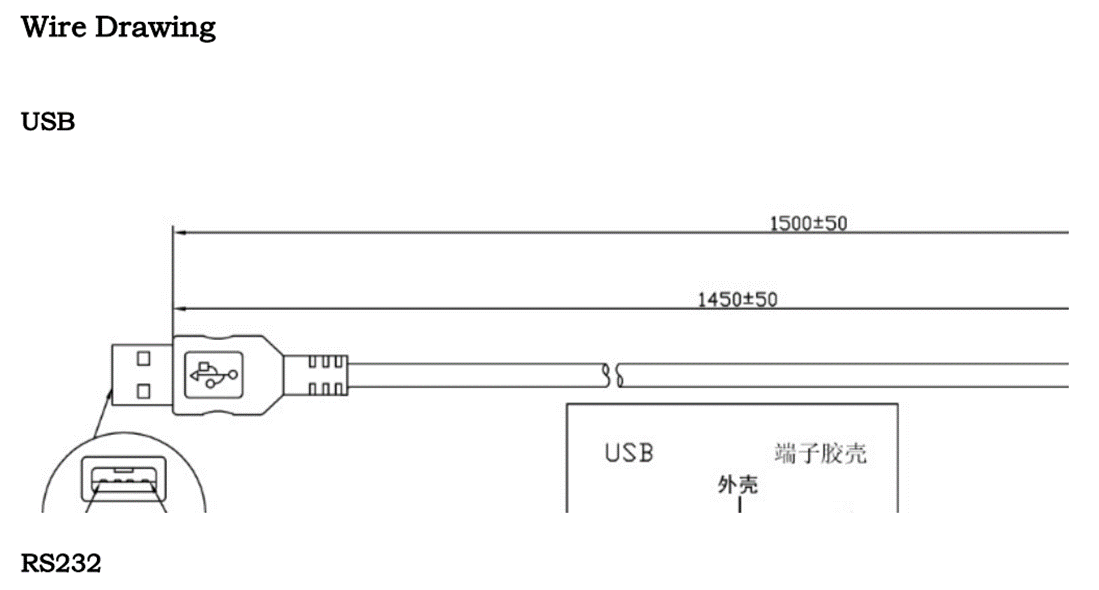

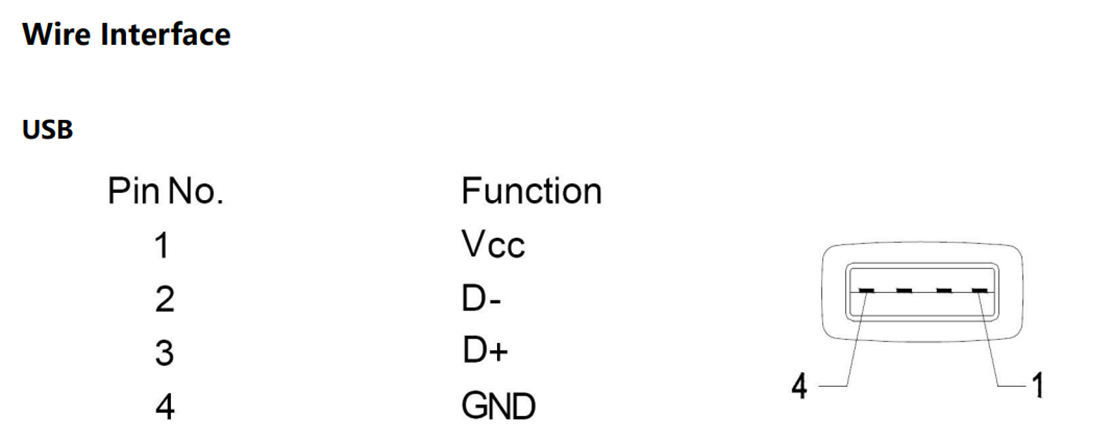

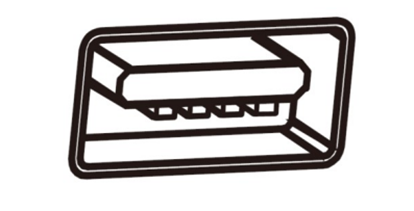

1. Host USB interface【USB female】

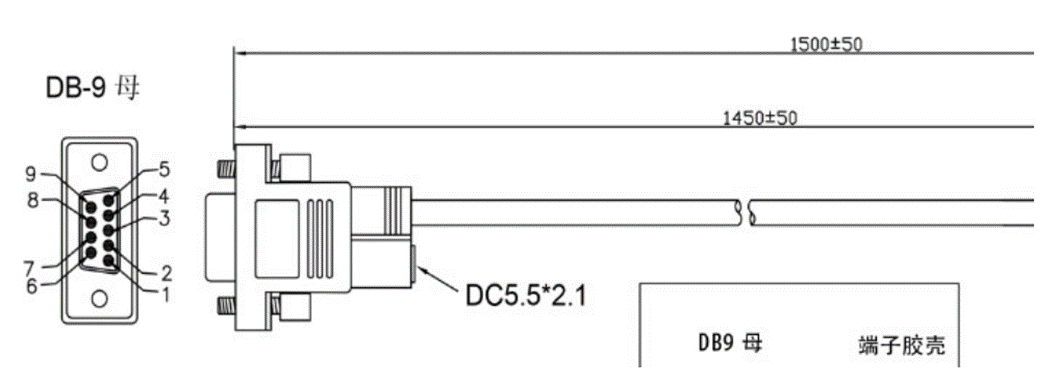

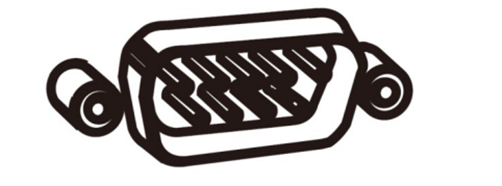

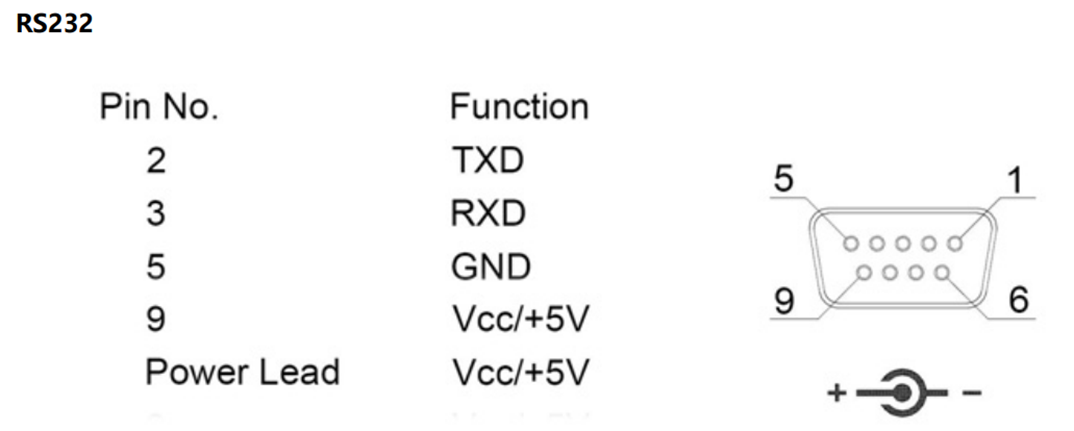

2. Host RS232 interface【DB9 male】
Note:
> Please check which ports are available on your host to choose the appropriate product type;
>If necessary, you can contact the manufacturer to customize the interface type you need.

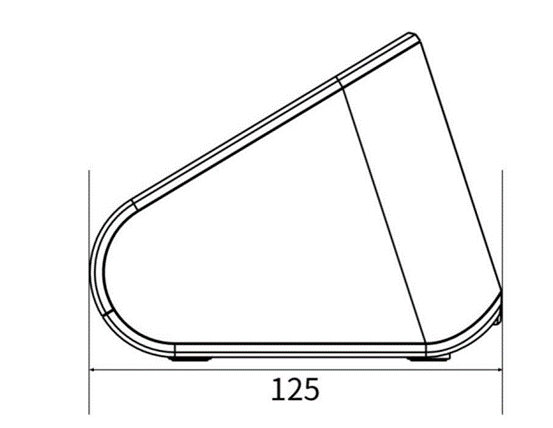

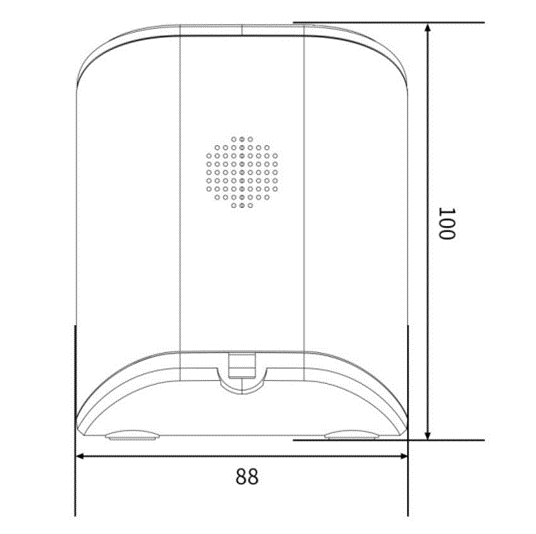

Structure Dimension Unit：mm
Performance
Communication Mode：USB（USB-KBW，USB-COM），RS232
Sensor：CMOS
Pixel：640*480
Light：White LED
Reading Precision：≥5mil/0.127mm（PCS90%,CODE 39）
Depth of Field：0mm~320mm
Decoding Speed：15CM/S
Reading Mode：Induction reading, long bright reading, a single reading
Prompt Mode：LED, Buzzer
Reading Perspective：58°(Diagonal line)
Reading Angle：Roll: ±360°，Pitch:±60°，Skew: ±55° CODE39,10mil/0.25mm,PCS90% (Test Conditions)
Print Constrast：≥25%
Ambient Illumination：Dark Environment，Indoor Natural Light
Code System：UPC-A，UPC-E，EAN-8，EAN-13，Code 128， Code 39， Code32，Code 93, Code 11, Codabar, Interleaved 2 of 5， Matrix 2 of 5, Industrial 2 of 5, Standard 2 of 5, QR Code。
Mechanical/Electrical Parameters
Weight： About 225g（USB）
Dimension： 125mm L* 88mm W * 100mm H
Wire Length： 1.5 Meters
Port Type： USB
Power Input： DC 5V 1A
Current： 105mA（Average Work）
Working Environment
Working Temperature： -20℃ to 50℃
Storage Temperature： -40℃ to 60℃
Working Humidity： 5% to 95%（Non-Condensing）
Transportation Vibration Test： 10H@125RPM
Spare Part List
Cable USB: It is used for USB communication with connecting barcode scanner and host. Power Adapter(optional)： Output: DC5V 1A, Input: AC100~240V 50~60Hz. It can be used for serial power supply.
Depth of Field
Barcode Type Barcode Density Min Max
Code 39 0.127mm(5mil) 0mm 30mm
Code 39 0.25mm(10mil) 0mm 80mm
UPC/EAN 0.33mm(13mil) 0mm 100mm
QR Code 20.0mil 0mm 100mm
WeChat Payment Code 6.7 inch screen 5mm 300mm
Alipay Payment Code 6.7 inch screen 10mm 350mm
**Testing Conditions: Environment Temperature = 24℃, Ambient Light Illumination = 300LUX; Testing Barcodes Will Be Provided By Vancode** **Notice: There will be no announcement if changing parameters**
