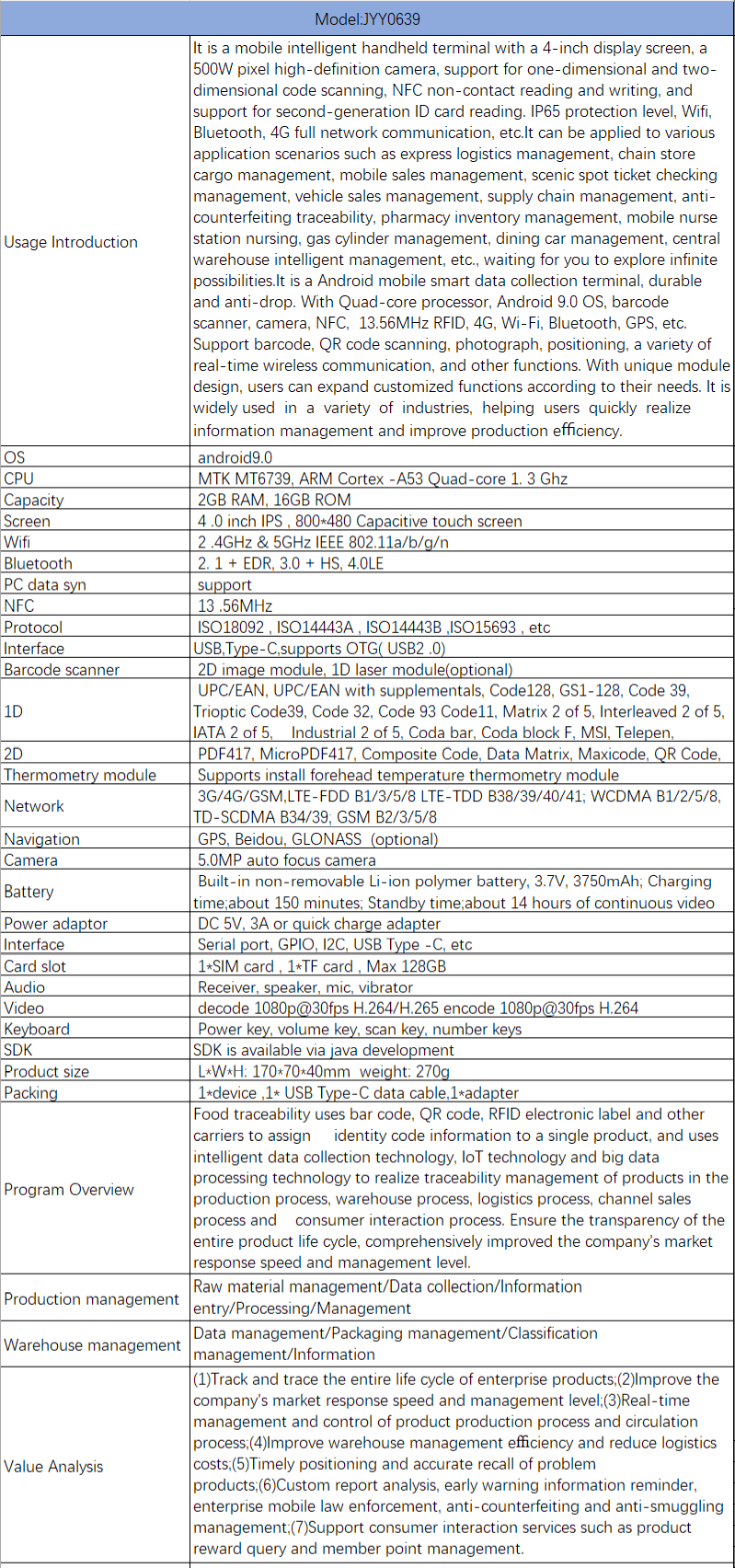

【Product basic parameter introduction (can be customized according to your configuration requirements, please contact us for details)】

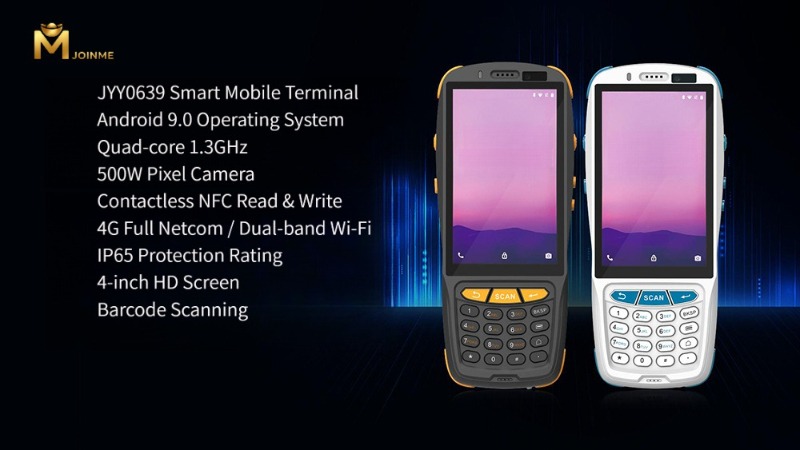

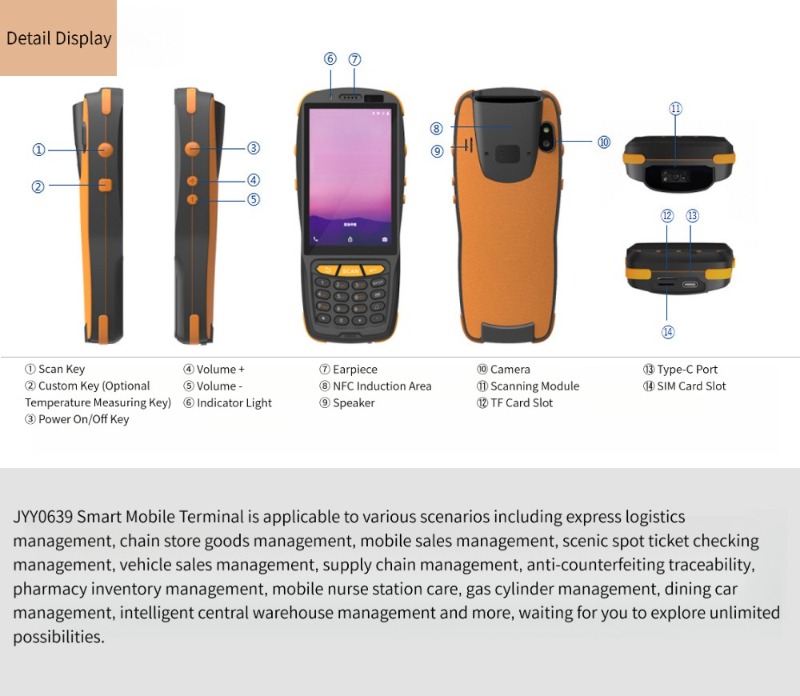

*Model:JYY0639

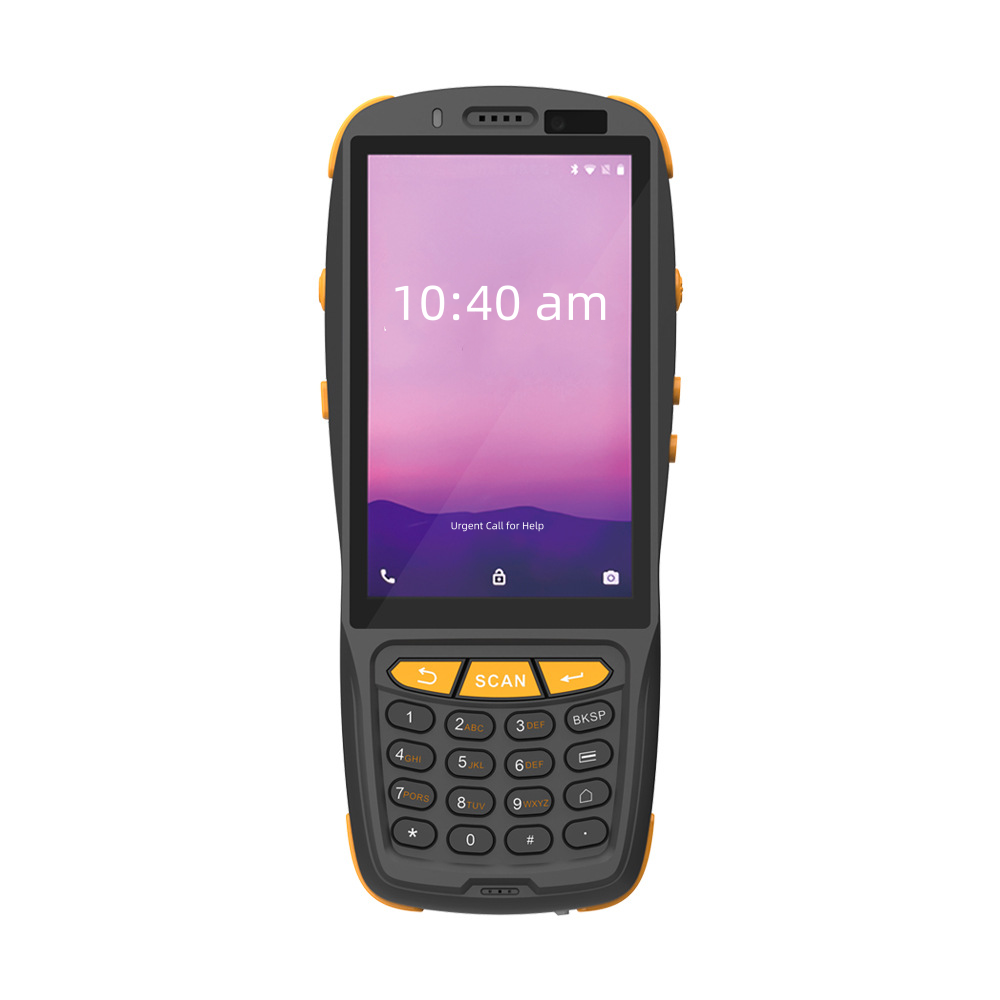

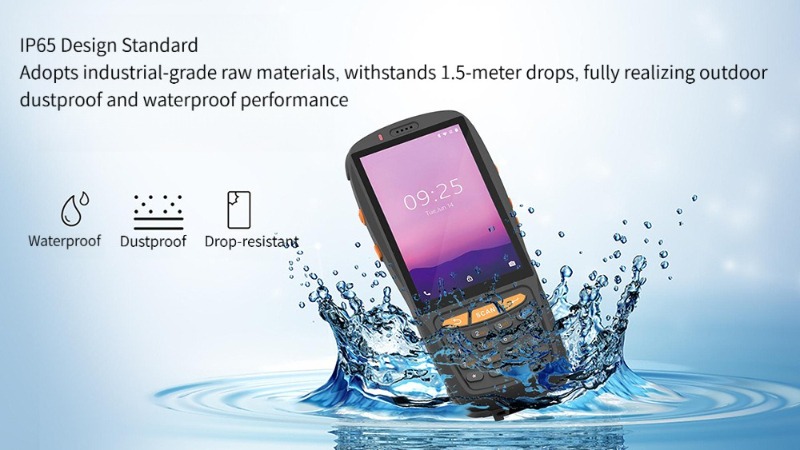

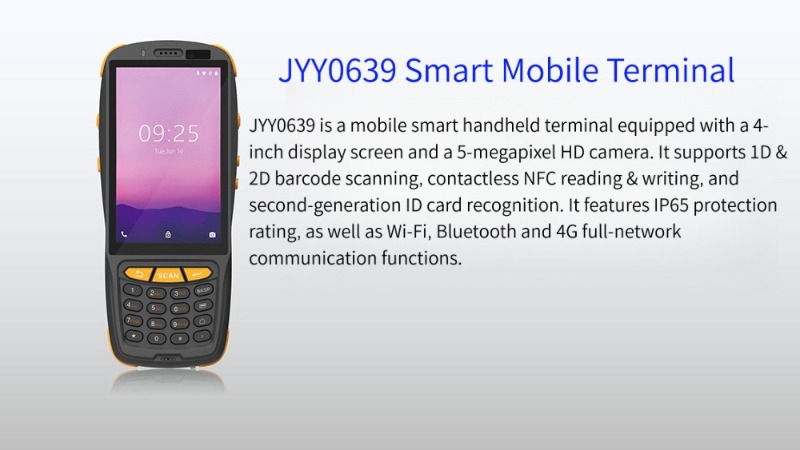

*It is a mobile intelligent handheld terminal with a 4-inch display screen, a 500W pixel high-definition camera, support for one-dimensional and two-dimensional code scanning, NFC non-contact reading and writing, and support for second-generation ID card reading. IP65 protection level, Wifi, Bluetooth, 4G full network communication, etc.
*It can be applied to various application scenarios such as express logistics management, chain store cargo management, mobile sales management, scenic spot ticket checking management, vehicle sales management, supply chain management, anti-counterfeiting traceability, pharmacy inventory management, mobile nurse station nursing, gas cylinder management, dining car management, central warehouse intelligent management, etc., waiting for you to explore infinite possibilities.
*It is a Android mobile smart data collection terminal, durable and anti-drop. With Quad-core processor, Android 9.0 OS, barcode scanner, camera, NFC, 13.56MHz RFID, 4G, Wi-Fi, Bluetooth, GPS, etc. Support barcode, QR code scanning, photograph, positioning, a variety of real-time wireless communication, and other functions. With unique module design, users can expand customized functions according to their needs. It is widely used in a variety of industries, helping users quickly realize information management and improve production efficiency.

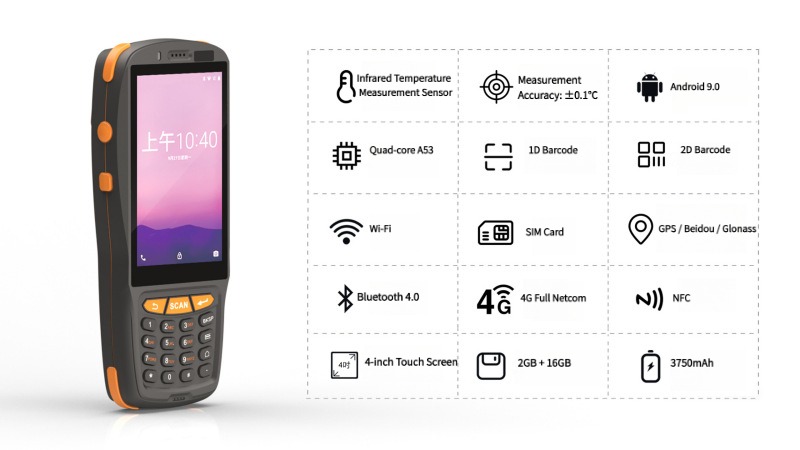

*Features:

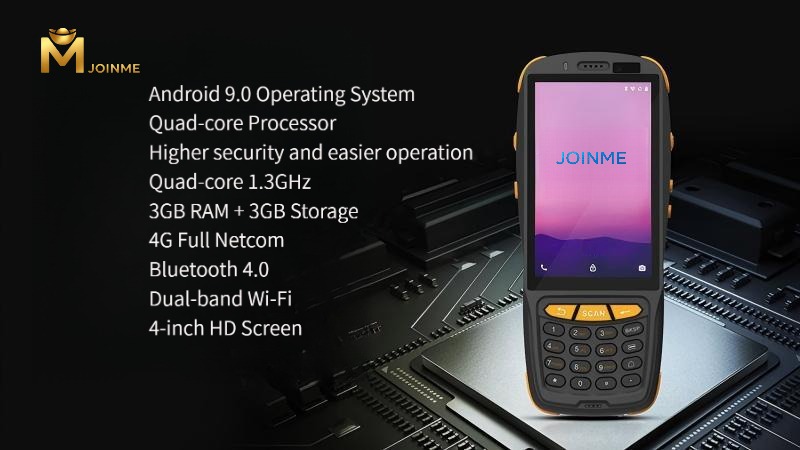

*OS: android9.0
*CPU: MTK MT6739, ARM Cortex -A53 Quad-core 1. 3 Ghz
*Capacity: 2GB RAM, 16GB ROM
*Screen: 4 .0 inch IPS , 800*480 Capacitive touch screen
*Wifi: 2 .4GHz & 5GHz IEEE 802.11a/b/g/n
*Bluetooth: 2. 1 + EDR, 3.0 + HS, 4.0LE
*PC data syn: support

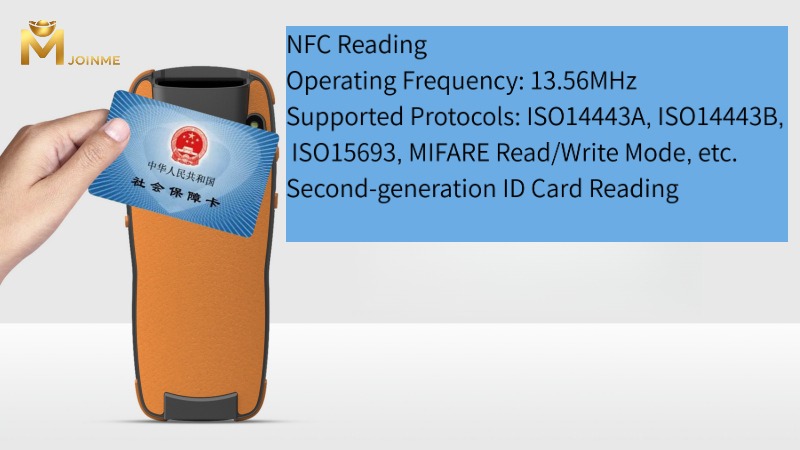

*NFC: 13 .56MHz
*Protocol: ISO18092 , ISO14443A , ISO14443B ,ISO15693 , etc
*USB Type-C , suppo rts OTG( USB2 .0)

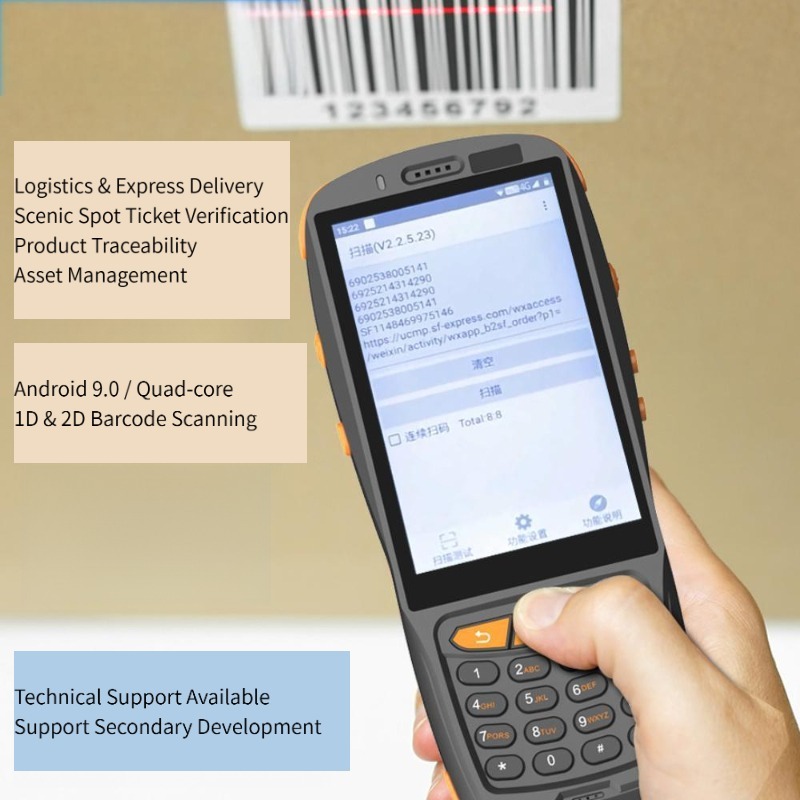

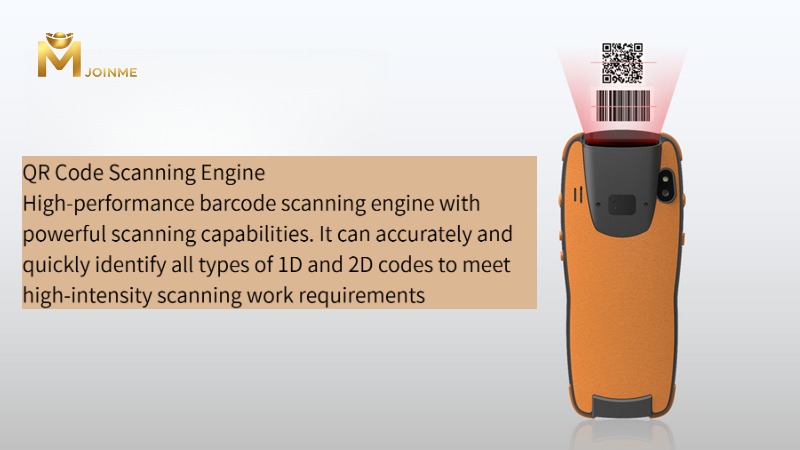

*Barcode scanner: 2D image module, 1 D laser module(optional)
1D: UPC/EAN, UPC/EAN with supplementals, Code128, GS1-128, Code 39, Trioptic Code39, Code 32, Code 93 Code11, Matrix 2 of 5, Interleaved 2 of 5, IATA 2 of 5, Industrial 2 of 5, Coda bar, Coda block F, MSI, Telepen, Code11, GS1 Data Bar variants;
2D: PDF417, MicroPDF417, Composite Code, Data Matrix, Maxicode, QR Code, MicroQR, Aztec

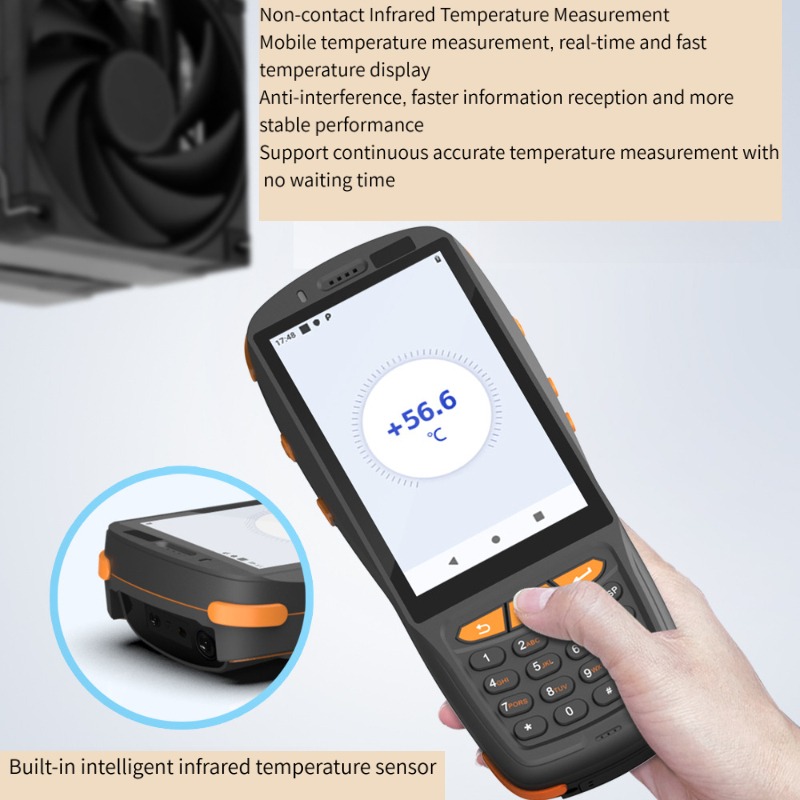

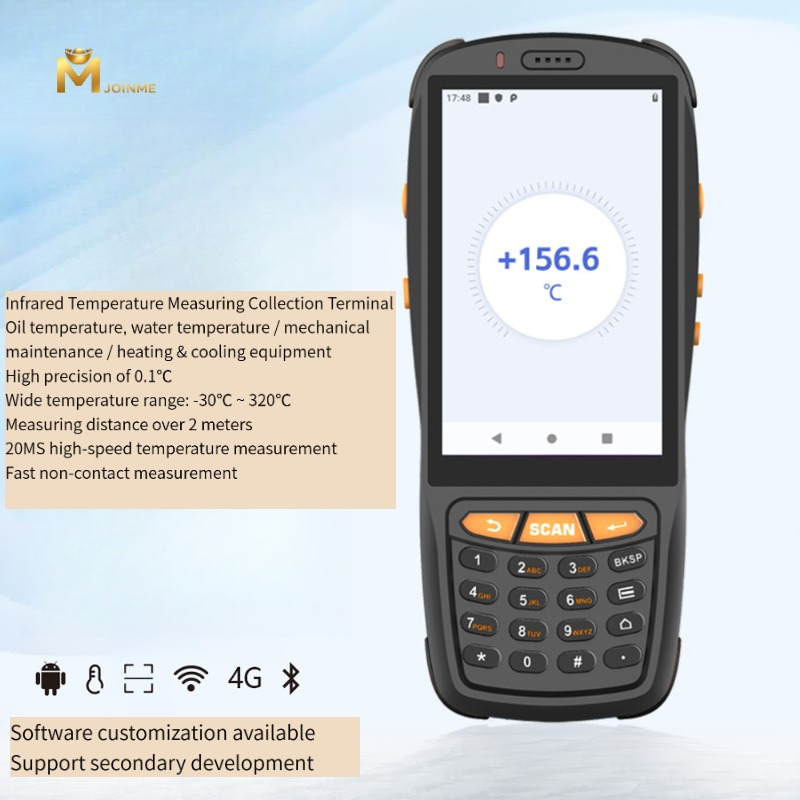

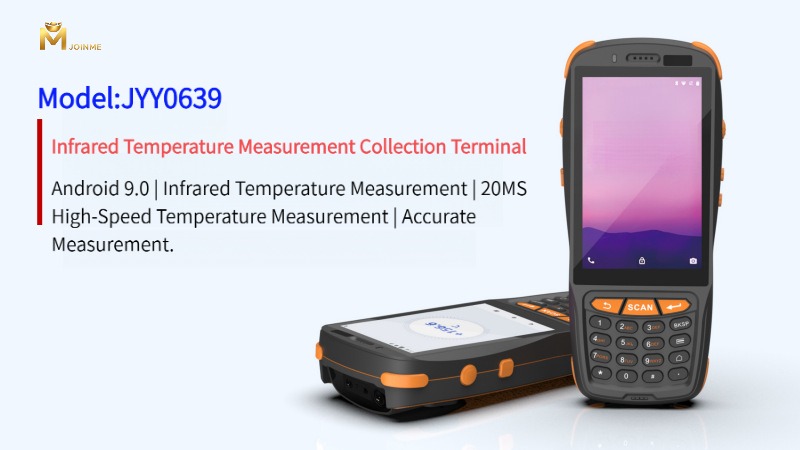

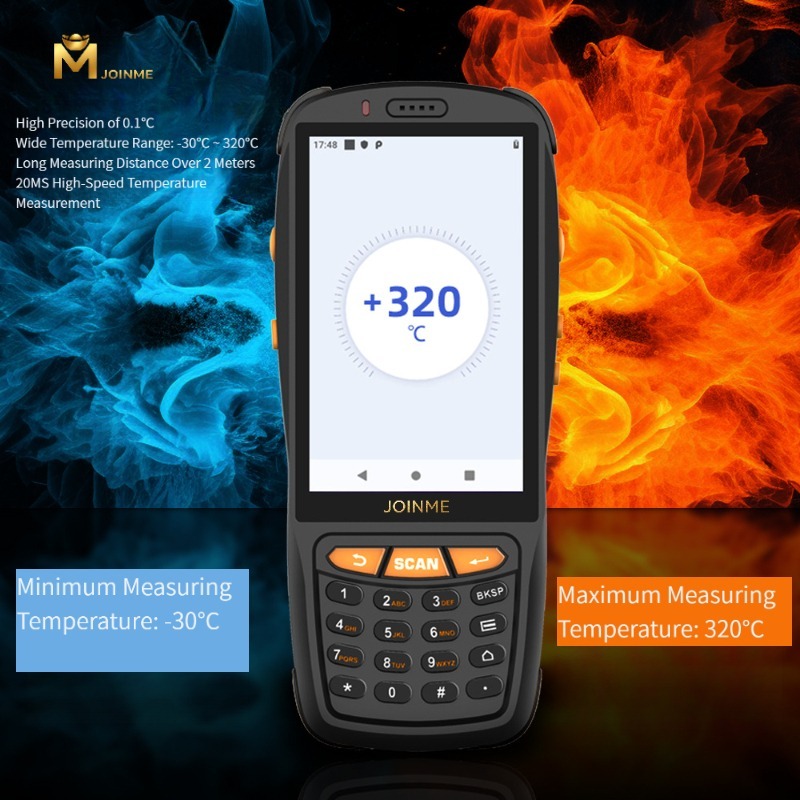

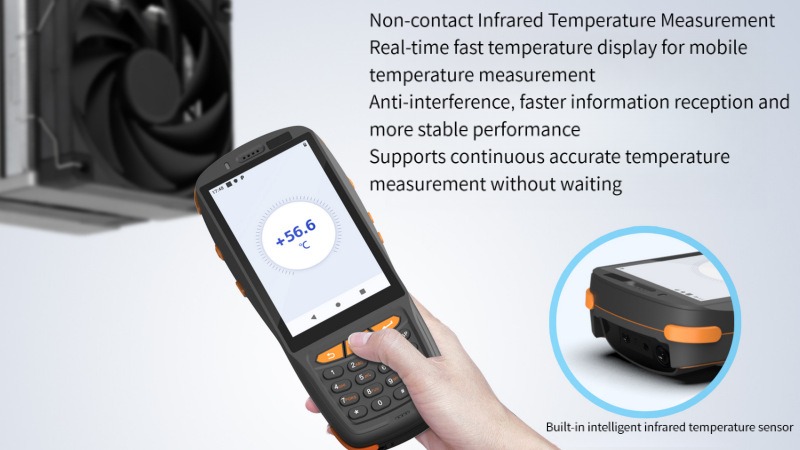

*Thermometry module: Supports install forehead temperature thermometry module
*Network: 3G/4G/GSM: LTE-FDD B1/3/5/8 LTE-TDD B38/39/40/41; WCDMA B1/2/5/8, TD-SCDMA B34/39; GSM B2/3/5/8
*Navigation: GPS, Beidou, GLONASS (optional)

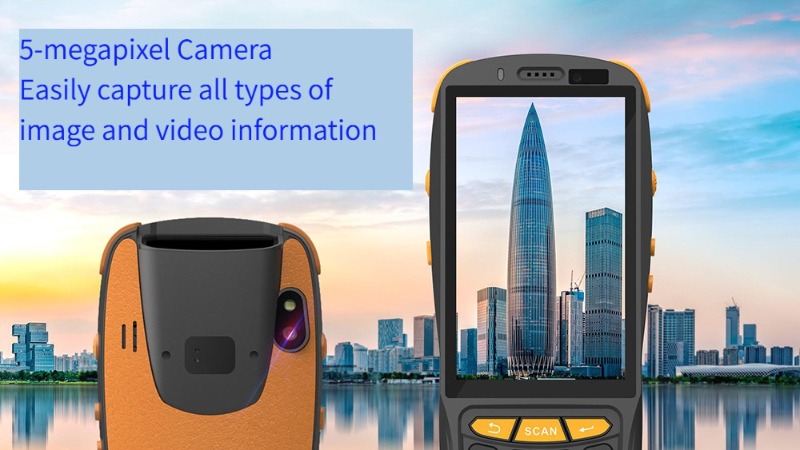

*Camera: 5 .0MP auto focus camera
*Rear single LED flashlight

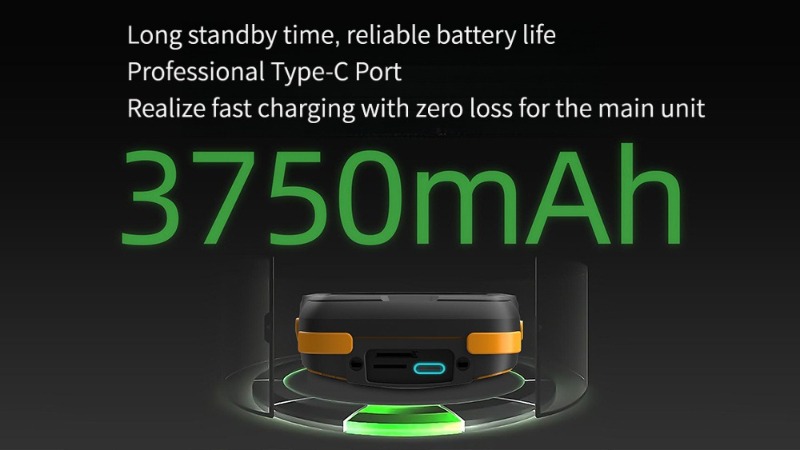

*Battery: Built-in non-removable Li-ion polymer battery, 3.7V, 3750mAh; Charging time: about 150 minutes; Standby time: about 14 hours of continuous video playback
*Power adaptor: DC 5V, 3A or quick charge adapter
*Interface: Serial port, GPIO, I2C, USB Type -C, etc
*Card slot: 1*SIM card , 1*TF card , Max 128GB
*Audio: Receiver, speaker, mic, vibrator
*Video: decode 1080p@30fps H.264/H.265 encode 1080p@30fps H.264
*Keyboard: Power key, volume key, scan key, number keys
*SDK is available via java development
*Temperature: - 10℃ ~ 50℃ , humidity: 0 ~ 95%
*Product size: L*W*H: 170*70*40mm weight: 270g
*Packing: 1*device ,1* USB Type-C data cable,1*adapter
*Food Traceability Solutions
1. Program Overview
Food traceability uses bar code, QR code, RFID electronic label and other carriers to assign identity code information to a single product, and uses intelligent data collection technology, IoT technology and big data processing technology to realize traceability management of products in the production process, warehouse process, logistics process, channel sales process and consumer interaction process. Ensure the transparency of the entire product life cycle, comprehensively improved the company's market response speed and management level.
2.Functions Introduce
*Production management:
Raw material management/Data collection/Information entry/Processing/Management
*Warehouse management:
Data management/Packaging management/Classification management/Information
3.Value Analysis
(1)Track and trace the entire life cycle of enterprise products;
(2)Improve the company's market response speed and management level;
(3)Real-time management and control of product production process and circulation process;
(4)Improve warehouse management efficiency and reduce logistics costs;
(5)Timely positioning and accurate recall of problem products;
(6)Custom report analysis, early warning information reminder, enterprise mobile law enforcement, anti-counterfeiting and anti-smuggling management;
(7)Support consumer interaction services such as product reward query and member point management
